Shear and Thunderstorms - The Basics


Nick L
 Share

Recommended Posts

Posted
  • Location: Cheddington, Buckinghamshire
  • Weather Preferences: Winter: Cold & Snowy, Summer: Just not hot
  • Location: Cheddington, Buckinghamshire

    This is just a basic guide as to why wind shear is so important when it comes to thunderstorm development and lifespans.

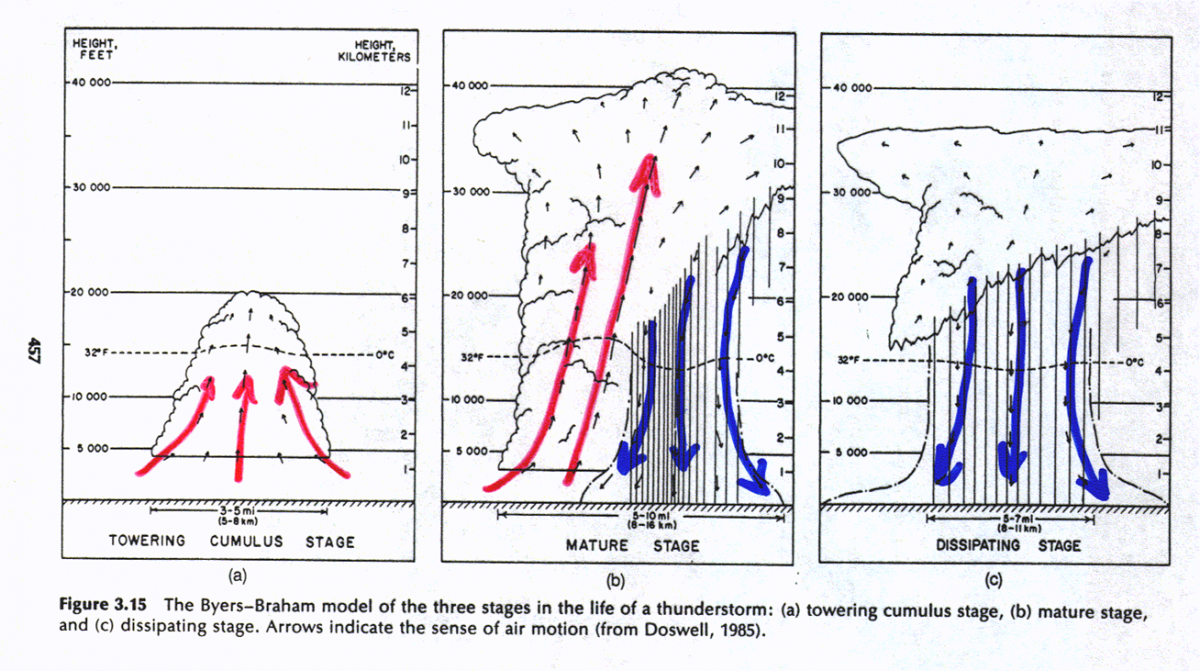

    So, why is shear important when it comes to thunderstorms? It's first useful to discuss the structure of a normal thunderstorm in a non-sheared environment. In the early stages, the updraft (which "feeds" the storm) is dominant, intensifying the thunderstorm. Once the thunderstorm reaches its mature stage, rain begins to fall and enhances a downdraft. In a non-sheared environment, the downdraft works against the updraft, thus cutting off the fuel source for the thunderstorm, and dying away fairly quickly. This can be shown in the next figure:



     post-7600-0-15448300-1398867614_thumb.pn



    Now, if we add a bit of wind shear, we can get much more prolonged storms. This is because the change in wind speed/direction with height causes the storm to tilt, and this tilting separates the updraft and downdraft, meaning the fuel source is sustained for longer. The image attached shows it quite nicely. The rain shaft is normally associated with the downdraft, primarily through drag causing descending air.



    Posted Image


    Typical wind shear values for single cell storms are below 15m/s, multicell storms 15-25m/s and supercell storms >25m/s. HOWEVER, shear is not the only ingredient that determines the nature of a thunderstorm. The Convective Available Potential Energy (CAPE) is also a key factor. This is essentially a measure of the positive buoyancy or instability of the atmosphere. If you've got plenty of shear but no CAPE then you're not going to get much!

    This is all fairly basic and not at all exhaustive. There are other and more complicated factors regarding the cycle of supercells, but this is just a broad overview of typical UK thunderstorms. If anyone wants to add/correct anything I've said then feel free!

    (Figures found in various lecture notes...)
    Edited by Nick L
    • Like 9
    Link to comment
    Share on other sites

    • Replies 6
    • Created
    • Last Reply

    Top Posters In This Topic

    Popular Days

    Top Posters In This Topic

    Posted Images

    Posted
  • Location: The Netherlands
  • Location: The Netherlands

    A great summary Nick! I think this will be of benefit to many  :) .



    One addition: another important type of thunderstorm, which is also very frequent in the UK is a squall line. This type of storm develops when wind shear is at least 10 m/s between the surface and 2 kilometres height, or more than 20 m/s between the surface and 6 kilometres height1. Usually, these kind of storms are triggered due to a trough of low pressure or a frontal zone.



    The most recent occurence (in the UK) I can remember is 25 January 2014 (which was a very unusual occurence based on the fact that the severe weather event occured in winter). Below is a link to the radar image of the event:



    http://europa.buienradar.nl/image/archive?timestamp=201401251600



    The image contains a radar image of Europe, as of 25 January 2014. 17 UTC. The squall line is located over central-eastern England.



    Furthermore, an excellent guide about thunderstorms and their specifications can be found in the following link (from ESTOFEX):



     http://www.estofex.org/guide/1_4_3.html



    Sources:

    1http://www.estofex.org/guide/1_4_3.html

    http://europa.buienradar.nl/image/archive?timestamp=201401251600

    http://www.knmi.nl/cms/content/117884/extreem_weer_tussen_vorst_en_dooi (in Dutch)

    Edited by Vorticity0123
    • Like 3
    Link to comment
    Share on other sites

    Posted
  • Location: North Bristol
  • Weather Preferences: Thunderstorms / Sunshine / Snow
  • Location: North Bristol

    Thanks again! Very helpful for people learning, such as myself.

    Link to comment
    Share on other sites

    Posted
  • Location: Cheddington, Buckinghamshire
  • Weather Preferences: Winter: Cold & Snowy, Summer: Just not hot
  • Location: Cheddington, Buckinghamshire

    A great summary Nick! I think this will be of benefit to many  :) .



    One addition...



    Yes add to this by all means, it's certainly not exhaustive. Hopefully I'll add some stuff to this myself soon :)

    Link to comment
    Share on other sites

    Posted
  • Location: King’s Lynn, Norfolk.
  • Weather Preferences: Hot and Thundery, Cold and Snowy
  • Location: King’s Lynn, Norfolk.

    Brilliant post Nick. I was always wondering what the actual principles were behind wind shear and exactly what happens. Think June 28th 2012 storms were a key example for the UK.

    Link to comment
    Share on other sites

    Posted
  • Location: Cheddington, Buckinghamshire
  • Weather Preferences: Winter: Cold & Snowy, Summer: Just not hot
  • Location: Cheddington, Buckinghamshire

    Thanks for the good feedback :) I'll hopefully add some more stuff in time, it's an excellent means of procrastination :D
