Fine Offset thermometer - location of sensor?


Recommended Posts

Posted
  • Location: Chelmsford, Essex
  • Location: Chelmsford, Essex

Hi

Does anyone know where the temperature sensor (or thermistor?) is located in the transmitter module for the Fine Offset WH1080 weather station?

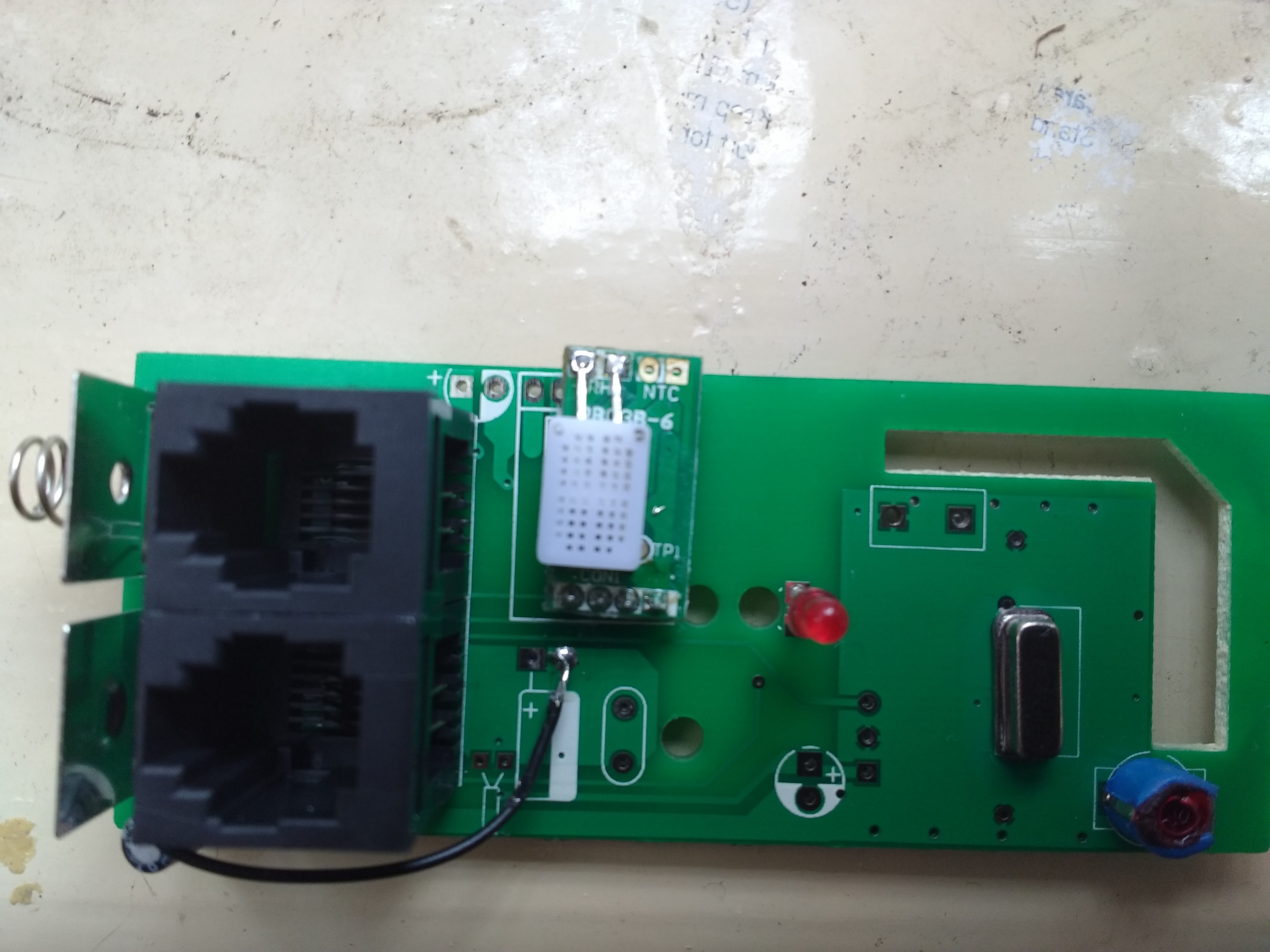

See attached an image of its insides. I thought it may be the white square component but that's actually for humidity.

Thanks!


Link to comment
Share on other sites

  • 2 weeks later...
  • Replies 1
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

Posted
  • Location: Runcorn New Town 60m ASL
  • Weather Preferences: Sunny and blisteringly hot
  • Location: Runcorn New Town 60m ASL
On 6/26/2016 at 11:04, h2005__uk__ said:

Hi

Does anyone know where the temperature sensor (or thermistor?) is located in the transmitter module for the Fine Offset WH1080 weather station?

See attached an image of its insides. I thought it may be the white square component but that's actually for humidity.

Thanks!


Look at the sub-PCB and notice the "NTC" in the upper right. NTC means Negative Temperature Coefficient ie a thermistor. The thermistor will be mounted under the sub-PCB.
