Short range model discussion - into 2018


Paul

Recommended Posts

Posted
  • Location: Aviemore
  • Location: Aviemore

    This is a new thread option we're trialling, which hopefully will become a regular. Please use it to discuss the model output at short range (between 0 and 72 hours). For longer term discussion, please head over to the main model thread:

    Want to have a bit of banter or a ramp and moan only loosely related to the models?
    The banter thread is for you:
    https://www.netweather.tv/forum/topic/86721-model-moans-ramps-and-banter/

    Want to talk about the weather in your part of the country?
    The regional threads are the place for you:
    https://www.netweather.tv/forum/forum/142-regional-discussions/

    Want to view the model outputs?
    You can get all the major ones here on Netweather:

    GFS
    GEFS Ensembles
    ECMWF
    ECMWF EPS
    NetWx-SR
    NetWx-MR
    Met-Office
    Fax
    GEM
    GFS Hourly

    Snow forecast and precip type
    Model Comparison
    Global Jet Stream
    Stratosphere

    Happy New Year!

    Link to comment
    Share on other sites

    • Replies 3.4k
    • Created
    • Last Reply
    Posted
  • Location: Crymych, Pembrokeshire. 150m asl
  • Weather Preferences: Extremes of all kinds...
  • Location: Crymych, Pembrokeshire. 150m asl

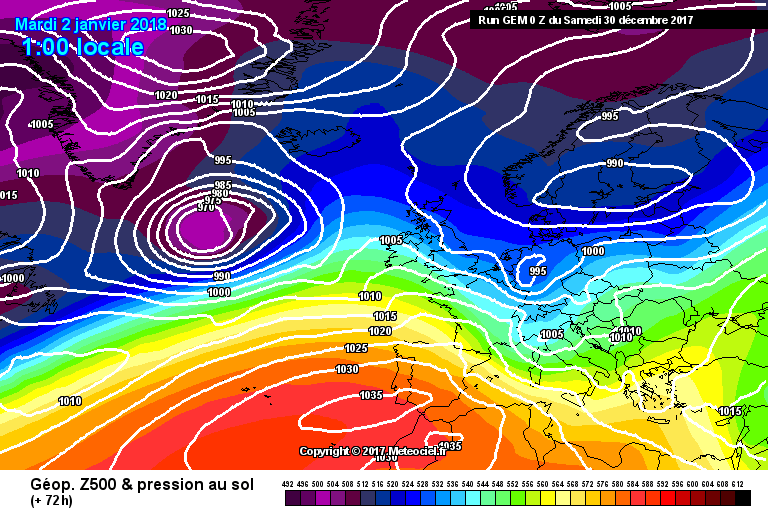

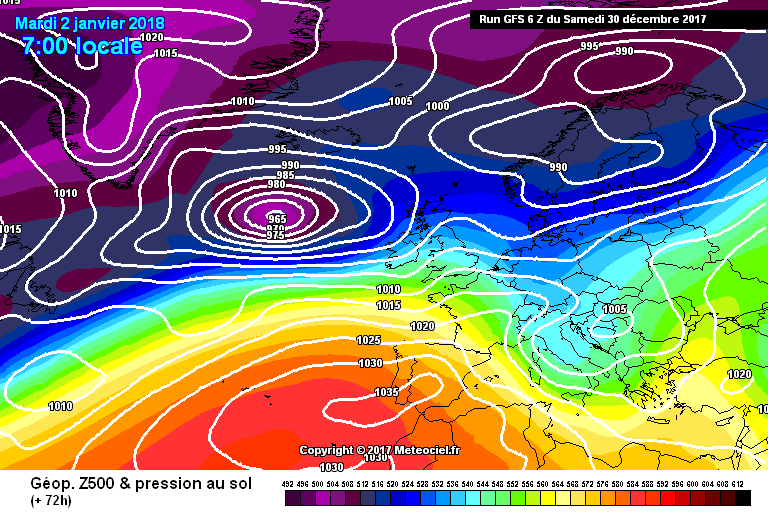

    The four main models currently all show a deep depression south of Greenland, moving closer to our west coast by +72h.  What happens to this depression and where it goes next is the question which remains to be answered as it could bring very different conditions depending on the evolution...

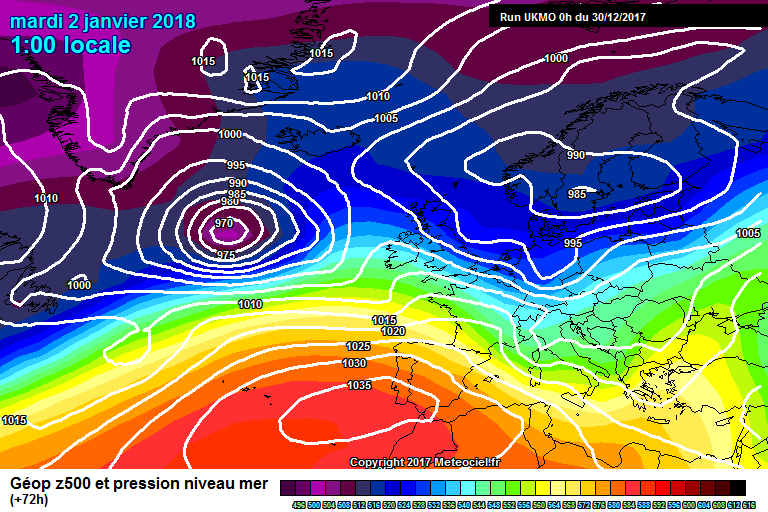

    UKMO   image.thumb.gif.368a51caf72c12759b549e1bfb7127b2.gif

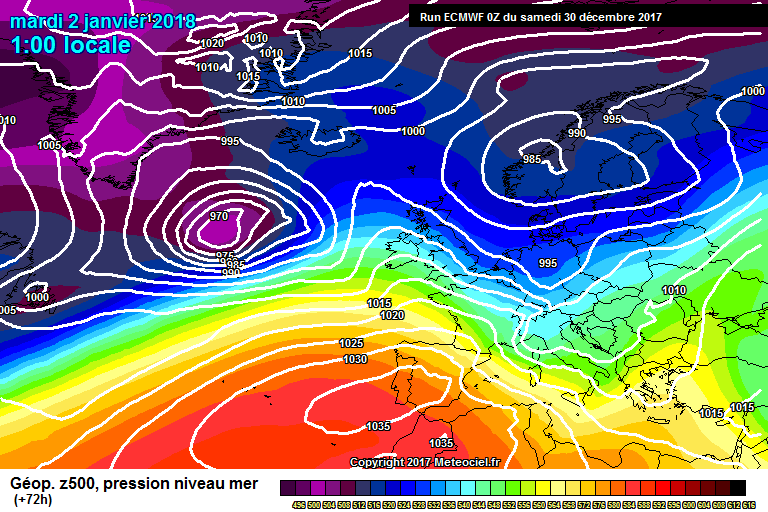

    ECM     image.thumb.gif.4ba3b1a214402156577540baee6c7161.gif

    GFS     image.thumb.png.f6ee7e27d1e366f7c688cccc9f0bc313.png

    GEM.   image.thumb.png.fc8c09aed0e6c6ab885669fe46322bb6.png

    This will bring the first stormy conditions of 2018 to some parts of the U.K.

    Link to comment
    Share on other sites

    Posted
  • Location: South Norfolk, 44 m ASL.
  • Weather Preferences: Varied and not extreme.
  • Location: South Norfolk, 44 m ASL.

    Great idea for a thread - it's often been unclear in the past which period posters are referencing when there is both long- and short-term interest.

    Link to comment
    Share on other sites

    Posted
  • Location: Nuneaton,Warks. 128m asl
  • Weather Preferences: Snow then clear and frosty.
  • Location: Nuneaton,Warks. 128m asl

    The jet is tracking just a little further north at times over the next few days on the back of the recent Azores high easing closer to our south.Often wavering across the UK marking the boundary between the polar and sub-tropical air.This meaning a very unsettled spell with wave depressions running across with wind and rain for much of country at times.

    viewimage.pbx?type=gfs;date=20171230;tim

    12z GFS showing the next 2 lows heading across Scotland puting areas further south in milder air for a while as the rain bands move through.

    Sun 6pm                                                                 Tues 12noon

     viewimage.pbx?type=gfs;date=20171230;tim             viewimage.pbx?type=gfs;date=20171230;tim

    The colder air still prevalent further north over much of Scotland with frequent snowfall over the highlands.Big temperature range at times with near freezing readings over parts of Scotland with double figures in the far south west.

    The NH overall 500hPa pattern for tomorrow

    viewimage.pbx?type=gfs;date=20171230;tim



    showing low pressure to the north and high pressure across the south with a westerly type of setup-often referred to as +ve NAO pattern indicating the mean pressure differences between the Azores and Iceland.

    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks

    One has only to look at the Met O Fax charts to see how disturbed the Atlantic is predicted to be over the next 72 hours or so

    http://www.weathercharts.org/ukmomslp.htm#t48

    I like using this link as it gives the times when the charts are issued. There are times each day when there is a 'selection' of charts for the same time but all 3 issued at differing times. It does give some indication, for even further ahead at times, of how the latest thinking is in Exeter.

    The link below gives a good idea of what weather systems are around.

    http://meteocentre.com/analysis/map-surface.php?date=0&lang=en&area=eur&size=standard

    One can have Europe or just the UK and a standard size or large size. The plots are the standard weather plots used throughout the world. During deepening and tracking lows one number in red to the right of the station circle will give you how much the pressure has fallen in the past 3 hours.

    For instance in the link below, the observation from SW Eire shows a -74 in red, showing a pressure fall of 7.4 mb in 3 hours. So quite a decent fall that, it may simply be a front approaching or it may indicate that the 'low'is deepening.

    oops sorry forgot to put it in, doing so now 2250!

    http://meteocentre.com/analysis/map-surface.php?map=UK&date=2017123020&size=large&lang=en&area=uk

    Link to comment
    Share on other sites

    Posted
  • Location: Hadleigh, Suffolk
  • Weather Preferences: An Alpine climate - snowy winters and sunny summers
  • Location: Hadleigh, Suffolk

    A very windy few days (Sun to Weds) coming up as this sequence of maximum wind gusts forecasts from Arpege highlights. Hardly an area of the UK escaping from seeing a gust of 50 mph+ at some stage, although for a change the far north of Scotland might turn out to be the least windy place to be!

    Wednesday is looking a particularly windy day nationwide.






    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks

    The link below allows you to see how the deep low moved overnight

    http://meteocentre.com/analysis/map-surface.php?map=UK&date=2017123109&size=standard&lang=en&area=uk

    and the  Met O Fax charts latest outputs. Have a look beyond 120 hours at the bottom, showing the upper air predicted pattern post 120h. Quite a marked trough with not much sign of any upper ridging to the N or NE of the UK that is the talk of the other model thread?

    instead it suggests a small upper ridge in the Iceland area.

    http://www.weathercharts.org/ukmomslp.htm

    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks

    This output is, as far as I can recall, never quoted in here, UK Met Fax charts, not the usual outputs that do get comments but their furthest outputs.

    http://www.weathercharts.org/ukmomslp.htm#UKmet-prognosis-00z

    click on T+144 and scroll down for their latest outputs for 500 mb and the surface, currently the 00z goes out to Saturday 6 January 00 z

    brain storm=this should be in the other model thread but I'll leave it here as well

    Link to comment
    Share on other sites

    Posted
  • Location: Hadleigh, Suffolk
  • Weather Preferences: An Alpine climate - snowy winters and sunny summers
  • Location: Hadleigh, Suffolk
    2 hours ago, johnholmes said:

    Can you slow that down please BW?

    Is this better John? The post above was 4 hourly intervals at 5 frames/second and, below, the same intervals but at 1 frame/second.


    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks

    Yes thanks very much for doing that, pretty windy for some looking at those frames.

    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks

    Happy New Year to readers of this model thread out to 72h.

    Not long to wait before the cold snap/spell comes into range.



    This link is likely to be as accurate as any that we see

    http://www.weathercharts.org/ukmomslp.htm#t72



    Link to comment
    Share on other sites

    Posted
  • Location: Camborne
  • Location: Camborne

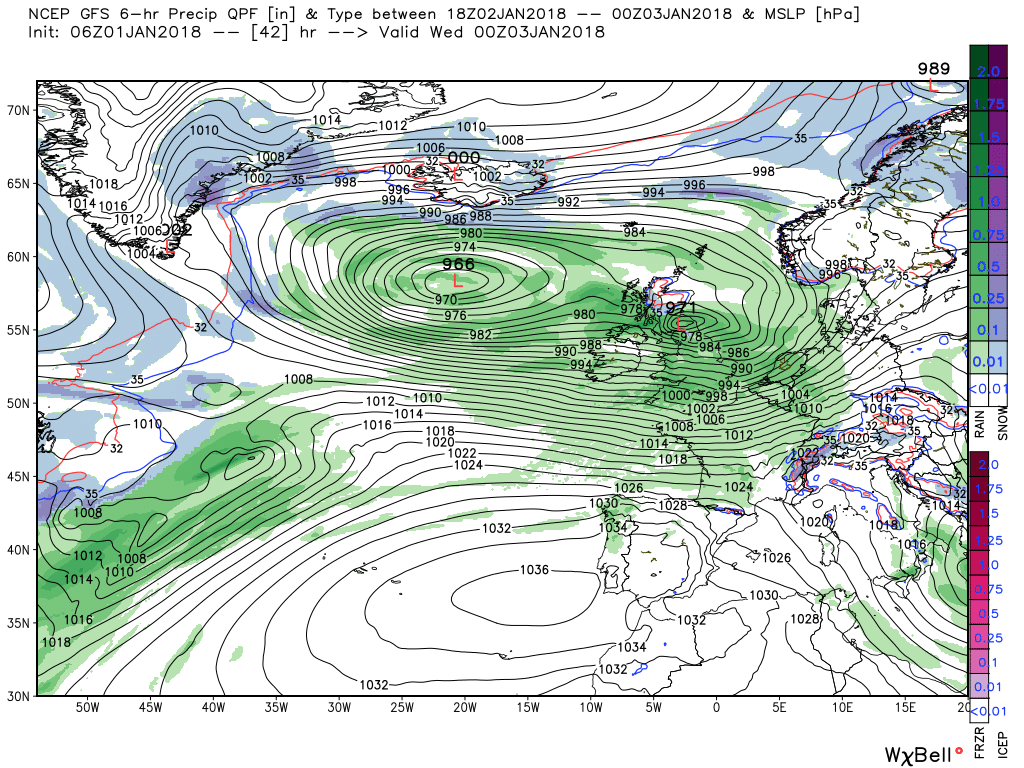

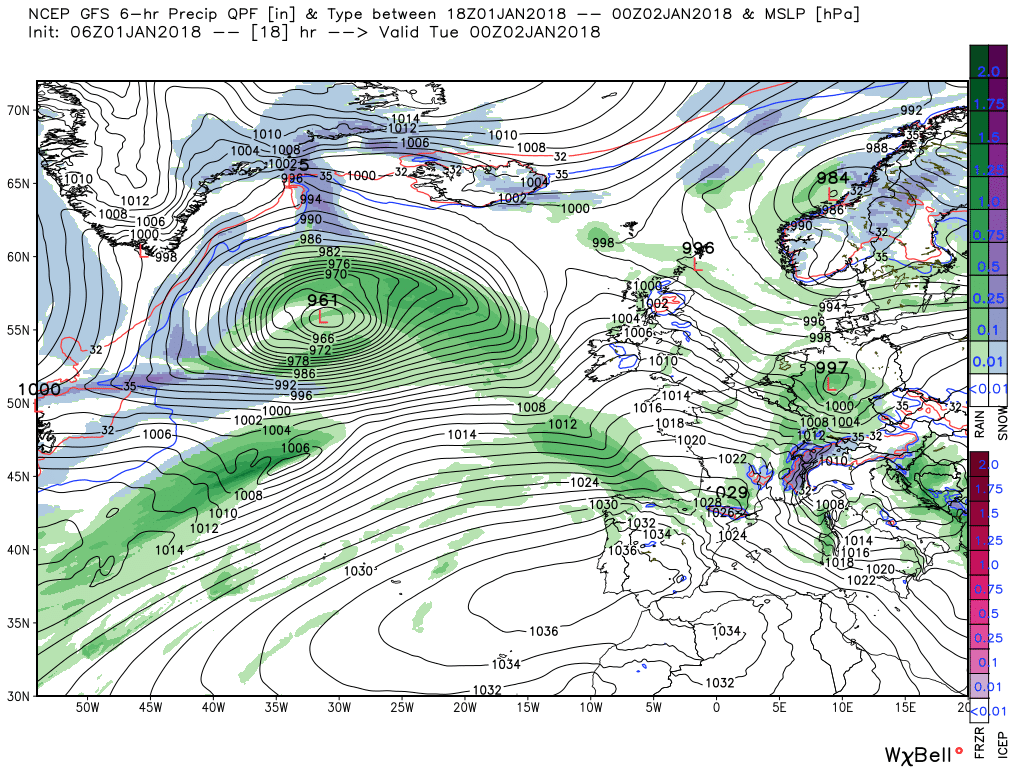

    According to the 6 gfs by midnight tonight we have some very transients ridging over the UK whilst away to the west there is a wave forming on the front that has sneaked up from the eastern seaboard to be south of the main depression.


    The wave then tracks quickly north east deepening rapidly on a very strong low level thermal gradient delineating the boundary between the cold and warm air to cross N. Ireland and the border country tomorrow evening. This will bring rain to many areas, particularly the further north with snow on the higher ground in Scotland. It will also get quite windy ending with the UK in a strong north westerly and frequent showers along western coasts.

    gfs_ptype_slp_eur3_7.thumb.png.97a7ad66a3b2035d9ec8b124e67df8a5.pnggfs_ptype_slp_eur3_8.thumb.png.2563ddd4224d670bdf680c31daefa6a4.pnggfs_uv500_natl_7.thumb.png.eecc35b8e93991324a3228e5258324f5.png

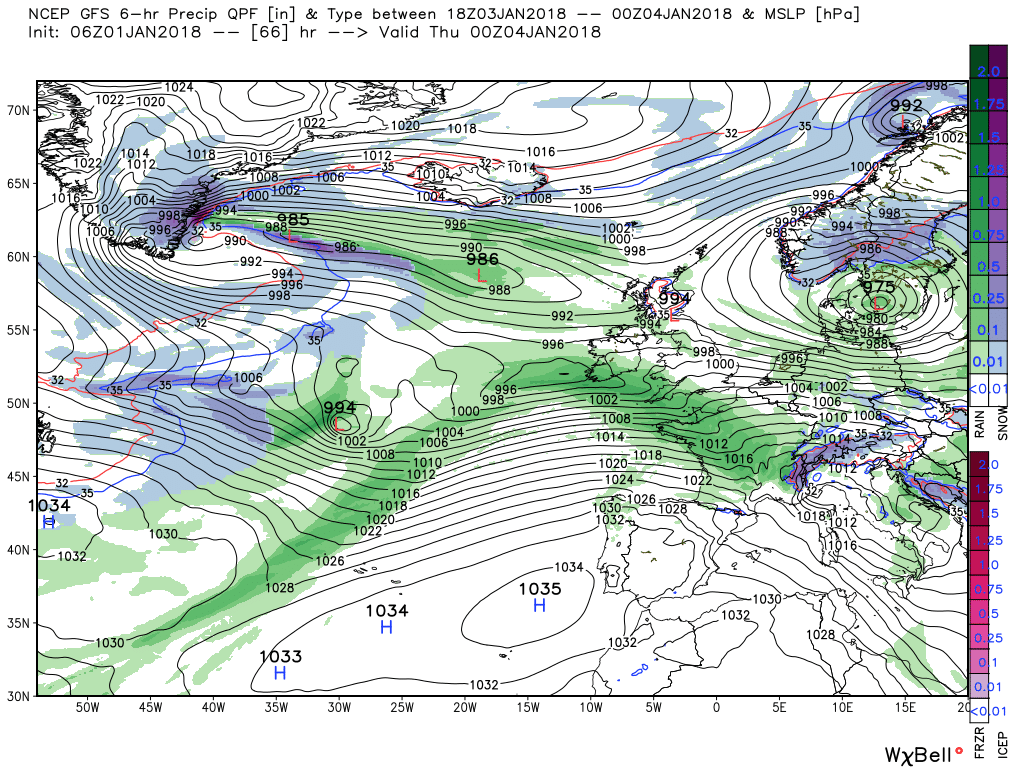

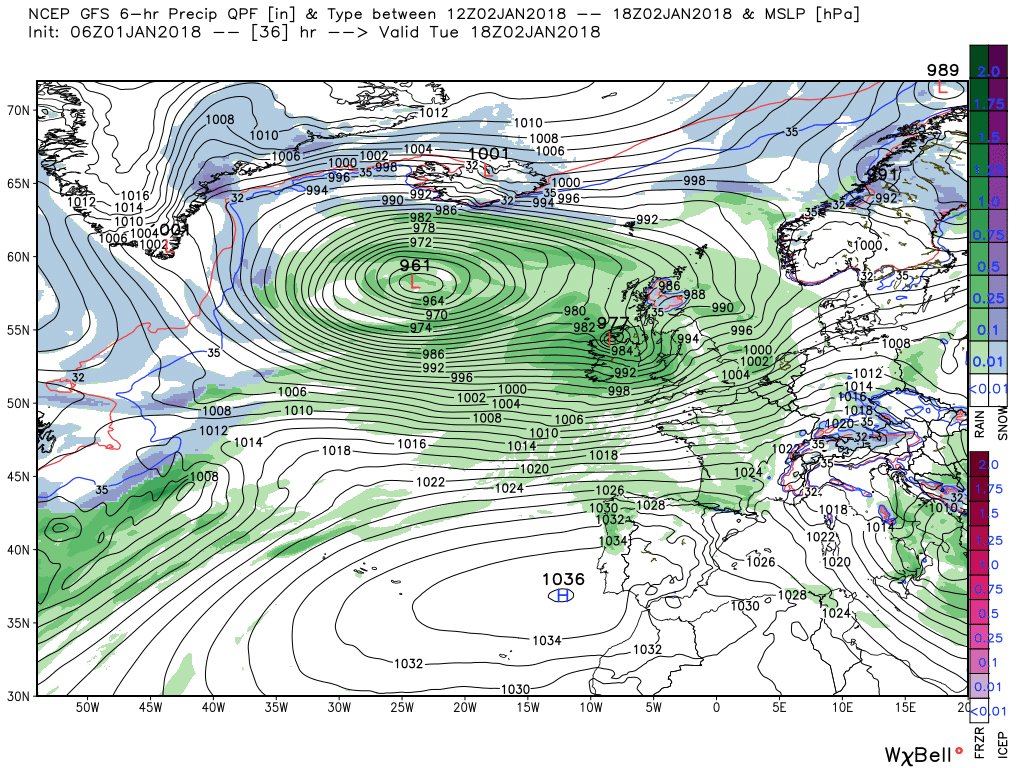

    As the low continues to track east the UK is once more at the mercy of the two pronged attack, one from the NW and the other from the SW as illustrated by the surface chart at 00 on Thursday which is also showing another low from the south east beginning to deepen behind the cold front to the west. This will deepen and swing across southern England on Friday whilst at the same time the Bermuda high pressure starts to amplify in response to the developing east coast storm I think it worth noting the 500mb chart at 00 Thursday which clearly shows the airmass distribution.

    gfs_ptype_slp_eur3_12.thumb.png.8d9a83aa415177b98088278121d609b9.pnggfs_z500_natl_12.thumb.png.e0bb85875dd014d315e134a0af3ec17d.png

    Link to comment
    Share on other sites

    Posted
  • Location: Camborne
  • Location: Camborne

    further to the above a yellow warning from the METO

    Quote

    Between 18:00 Tue 2nd and 08:00 Wed 3rd

    A spell of strong winds is expected later Tuesday, overnight into Wednesday morning. Combined with a period of high tides, it is likely that some western coastal communities will be affected by large waves and spray, and there is a small chance that injuries and danger to life could occur from large waves and beach material being thrown on to sea fronts, roads and coastal properties. Power cuts and disruption to other services (mobile phones for example) may occur, and there is a small chance of transport disruption or cancellation of public transport.

    https://www.metoffice.gov.uk/public/weather/warnings#?date=2018-01-02

    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks

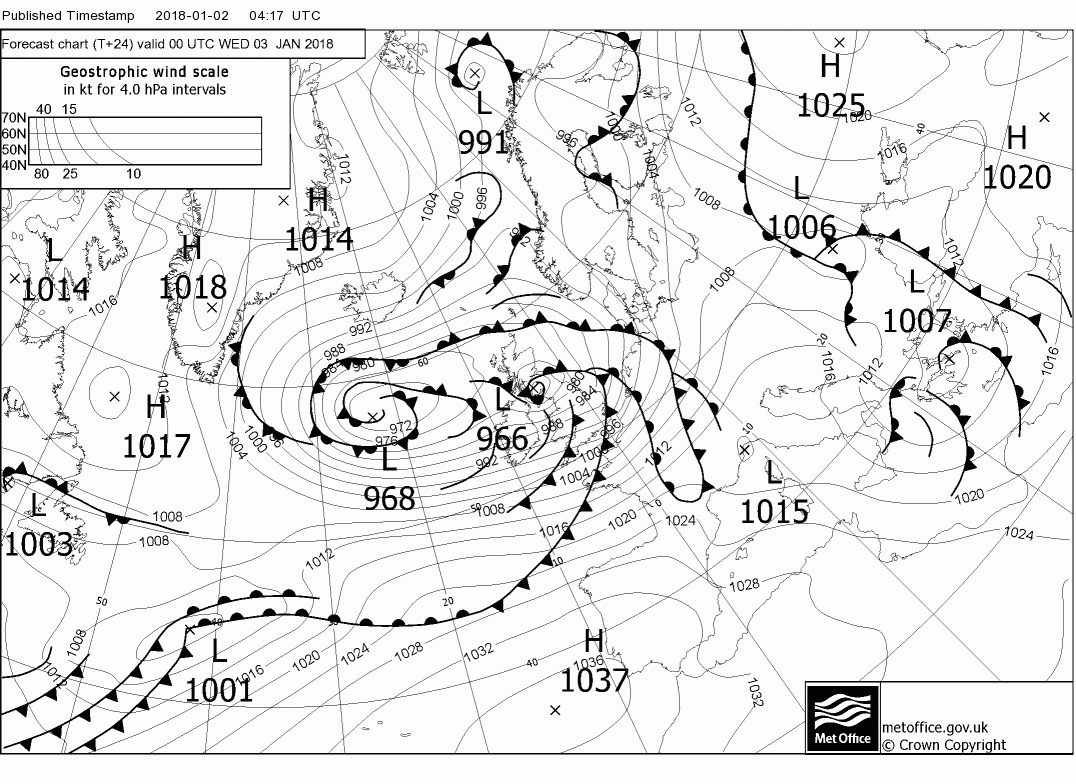

    Looking at the Fax outputs and the low is predicted to deepen by about 18 mb between the T+36 (12z Tuesday) and 00z Wednesday shown at 97 mb on the T+48 currently on view.

    As before the path of this low can be viewed, when it starts to deepen, on this link

    http://meteocentre.com/analysis/map-surface.php?date=0&lang=en&area=eur&size=standard



    Link to comment
    Share on other sites

    Posted
  • Location: Nuneaton,Warks. 128m asl
  • Weather Preferences: Snow then clear and frosty.
  • Location: Nuneaton,Warks. 128m asl

    Latest GFS run shows a wet and windy few days coming,these are charts for Weds.

    viewimage.pbx?type=gfs;date=20180101;timviewimage.pbx?type=gfs;date=20180101;tim

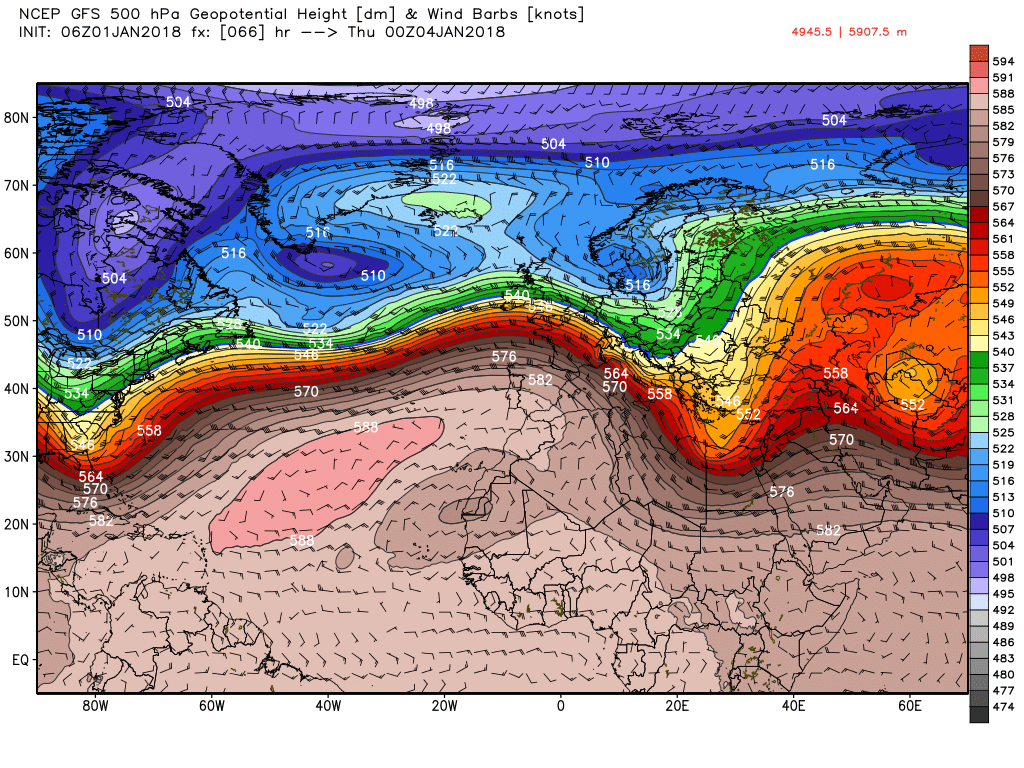

    The jet at times approaching 200mph wavering across the UK separating the cold air lurking just to the north from the sub-tropical air to the south.It A breeding ground for further wave depressions running across from the Atlantic.

    A look at Thursday 1200hrs  at the expected surface temperatures as some deeper cold starts head into N.Scotland on a northerly wind.

    viewimage.pbx?type=gfs;date=20180101;timviewimage.pbx?type=gfs;date=20180101;tim

    The effect of this is to enhance the large temperature differences north to south at this time..

    Link to comment
    Share on other sites

    Posted
  • Location: Crymych, Pembrokeshire. 150m asl
  • Weather Preferences: Extremes of all kinds...
  • Location: Crymych, Pembrokeshire. 150m asl

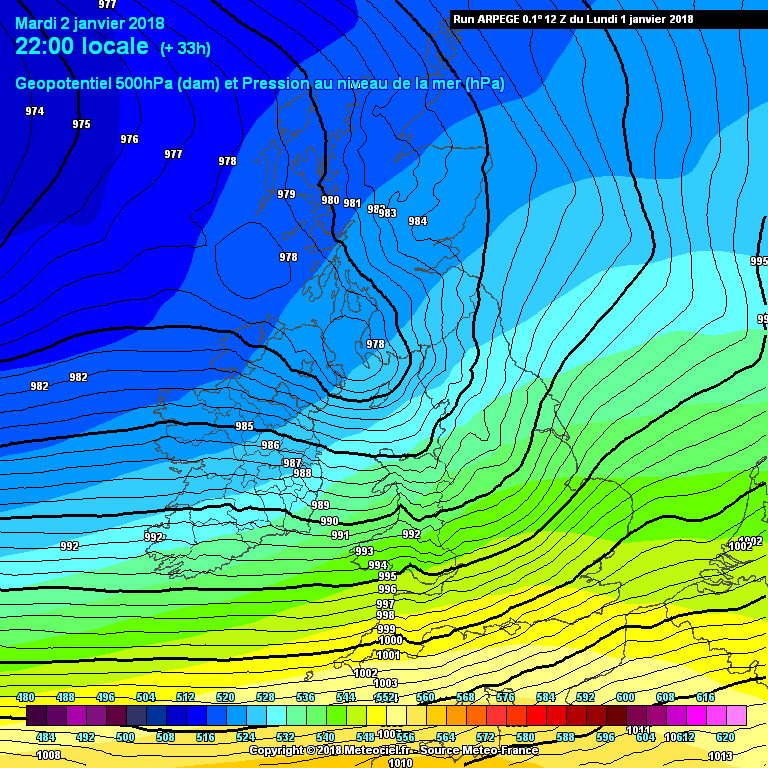

    Before we discover whether a weekend easterly will bring snow or rain to the UK we still have this nasty little depression to deal with, illustrated well by the Arpege

    image.thumb.png.d036b2caa824122cae210e412458d131.png   image.thumb.png.5b26a704b306fa297bad2c1da9996690.png

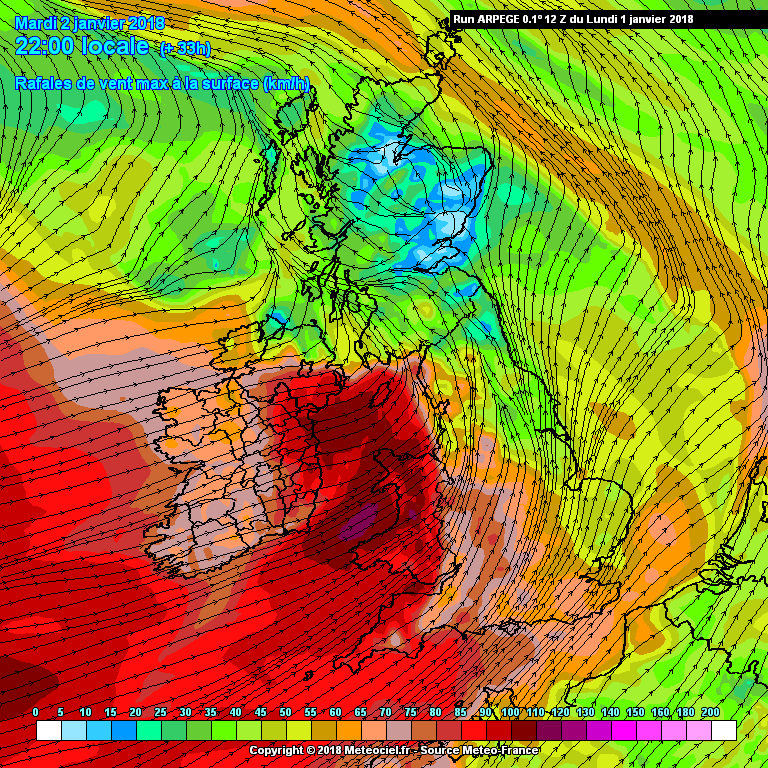

    Looks like tomorrow night will bring strong winds to many western and northern coasts and it will be very gusty even inland, accompanied by some prolonged rain, which could cause some travel disruption.  Not sure what the requirements are for a storm to be named but I don't think this has been given one yet?

    Link to comment
    Share on other sites

    Posted
  • Location: Pemberton, Wigan, 54 M ASL. 53.53,-2.67
  • Weather Preferences: Winter - snow, Irish sea convection. Summer - thunderstorms, hot sunny days
  • Location: Pemberton, Wigan, 54 M ASL. 53.53,-2.67
    1 minute ago, Sky Full said:

    Before we discover whether a weekend easterly will bring snow or rain to the UK we still have this nasty little depression to deal with, illustrated well by the Arpege

    image.thumb.png.d036b2caa824122cae210e412458d131.png   image.thumb.png.5b26a704b306fa297bad2c1da9996690.png

    Looks like tomorrow night will bring strong winds to many western and northern coasts and it will be very gusty even inland, accompanied by some prolonged rain, which could cause some travel disruption.  Not sure what the requirements are for a storm to be named but I don't think this has been given one yet?

     Yes, it has been named Eleanor and there is a thread for it now :-)

    Link to comment
    Share on other sites

    Posted
  • Location: Pemberton, Wigan, 54 M ASL. 53.53,-2.67
  • Weather Preferences: Winter - snow, Irish sea convection. Summer - thunderstorms, hot sunny days
  • Location: Pemberton, Wigan, 54 M ASL. 53.53,-2.67



    Link to comment
    Share on other sites

    Posted
  • Location: Camborne
  • Location: Camborne

    No need to go into the detail of Eleanor here but just to note the position at midnight tonight.

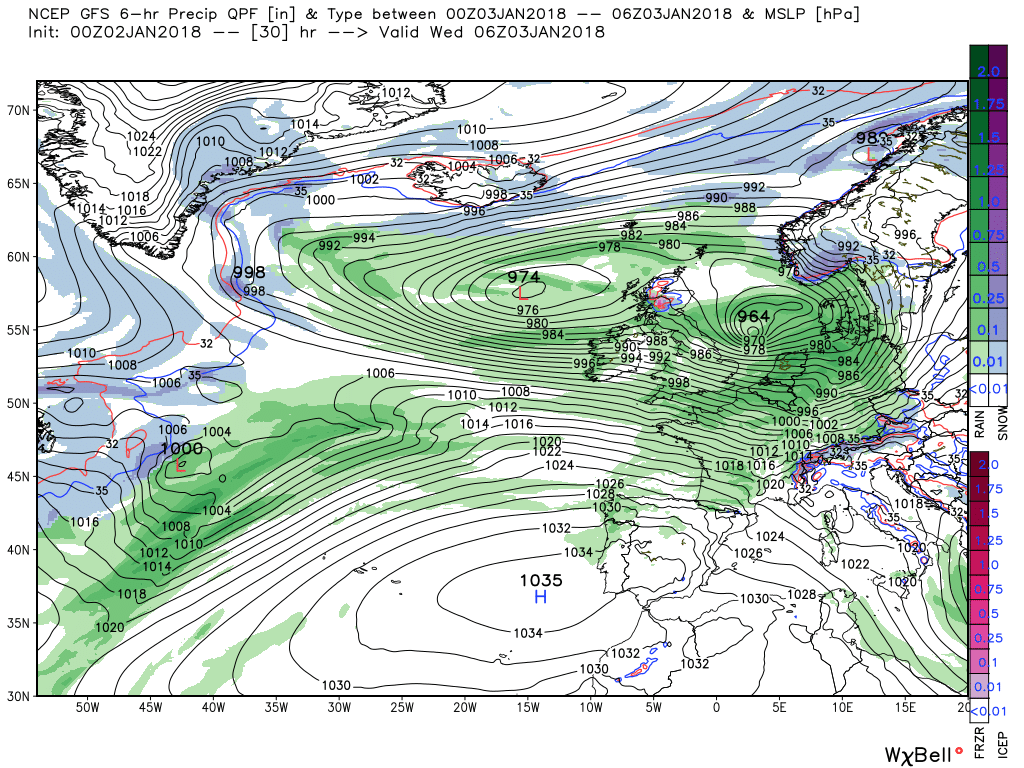

    Eleanor tracks east across the North Sea tomorrow leaving the UK in a strong north westerly wind, particularly in the north, with frequent squally showers, probably of snow in Scotland.

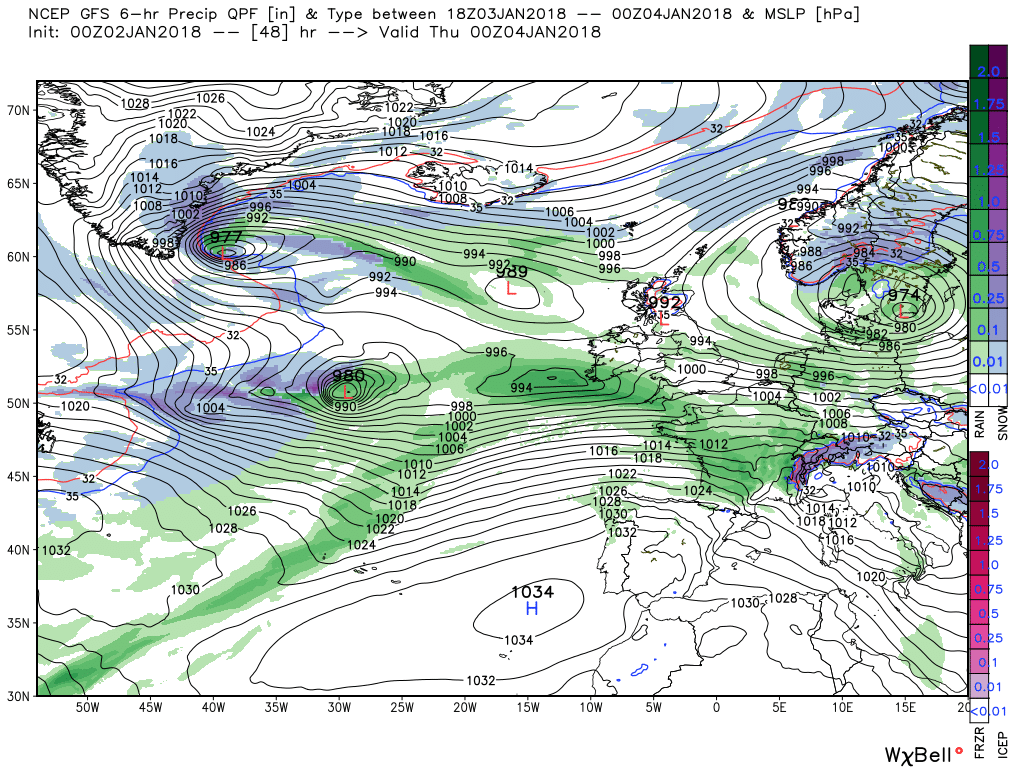

    gfs_ptype_slp_eur3_6.thumb.png.9a64d1d3c21dd4a3e94c1cf421181caf.pnggfs_ptype_slp_eur3_7.thumb.png.71c6e30a25402950e5c3e3ce68756737.png

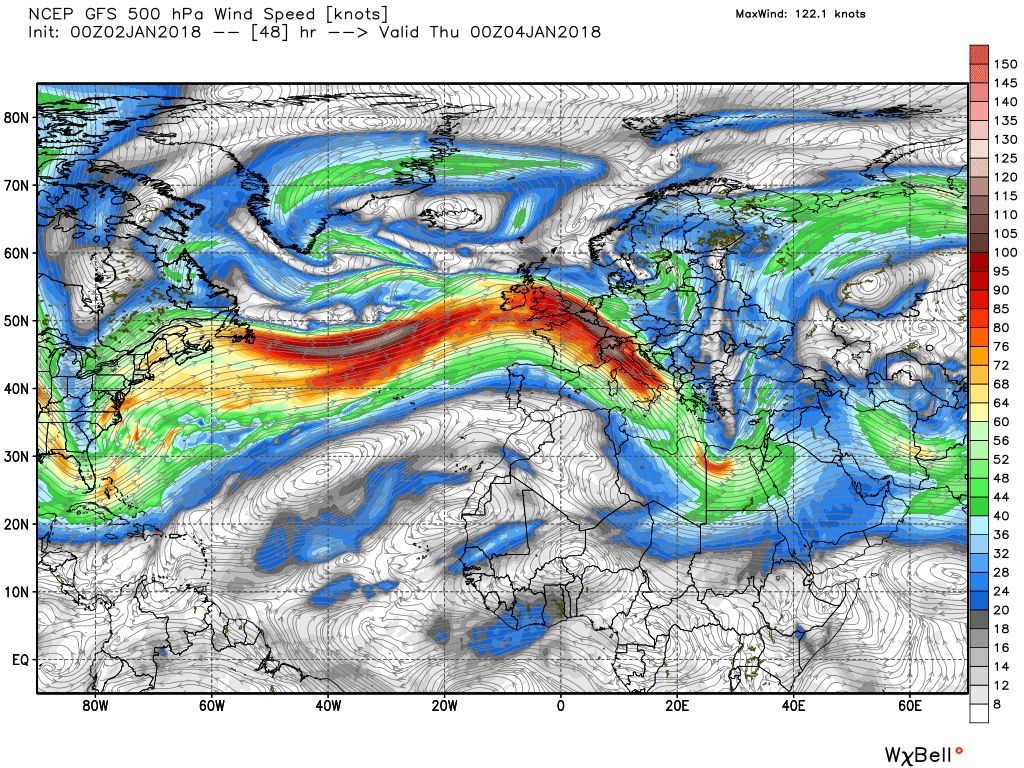

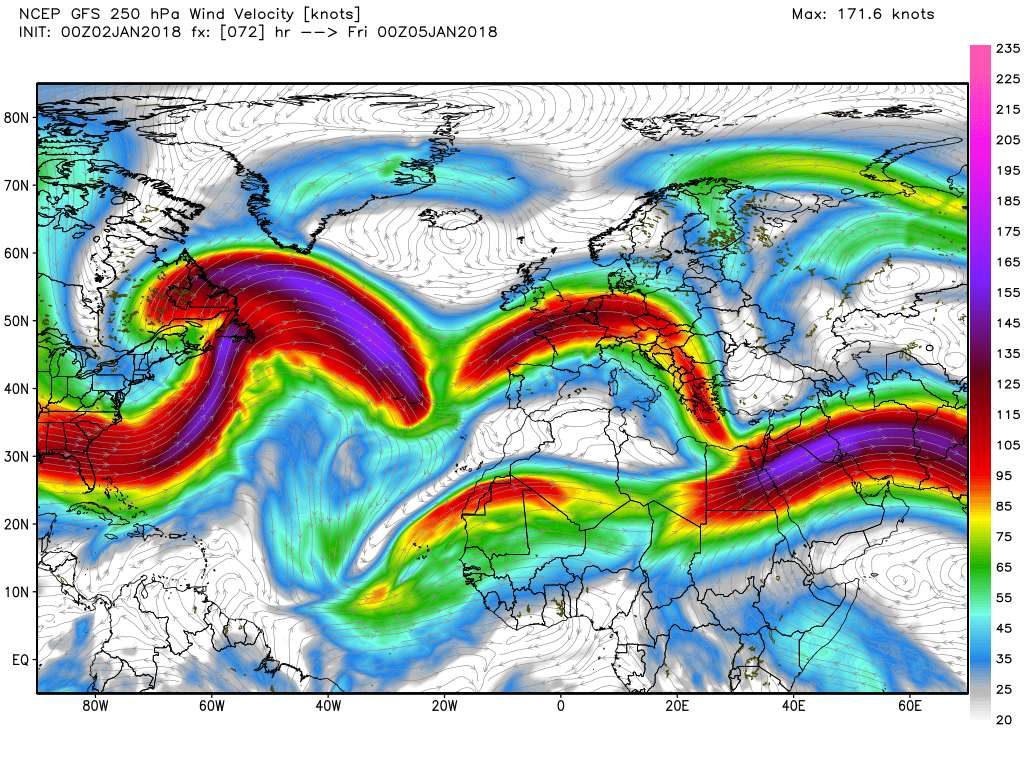

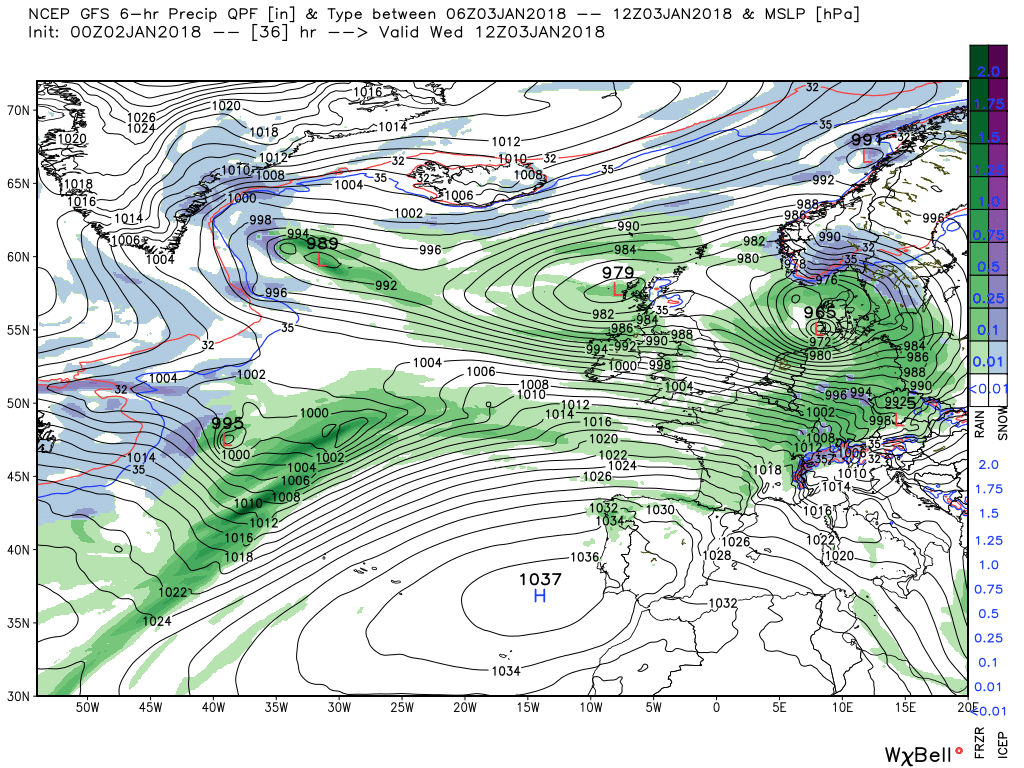

    As can be seen from the last chart the UK is at the sharp end of two energy flows, one from the NW and the other from the SW.  This is very well illustrated by the chart at Thursday 00 which has a frontal wave south west Ireland with the front already impacting Cornwall, with another developing low behind  and another low approaching from the north west. It also shows the strong jet which delineates the boundary between the cold and warm air and facilitates the movement of the developing low behind the frontal wave

    gfs_ptype_slp_eur3_9.thumb.png.1ed4d7fc87669277e538b832ce09e83f.pnggfs_uv500_natl_9.thumb.png.749ce63615d1cf33cd05bb8700f4811b.png

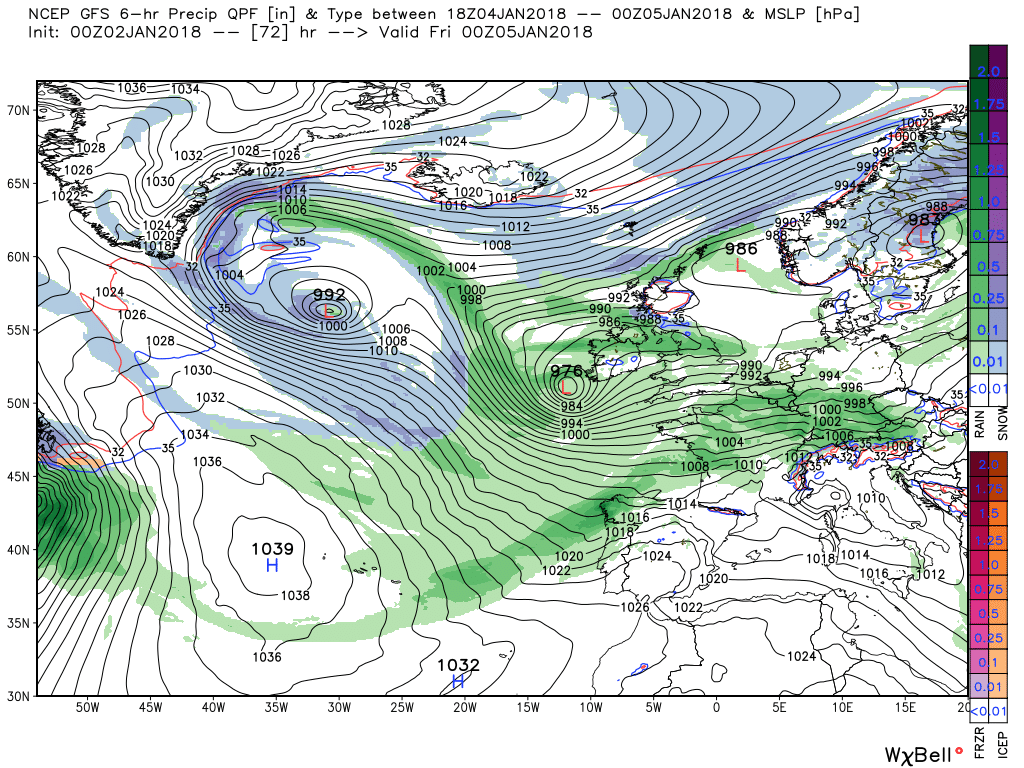

    Thus by Friday 00 the low is 978mb south west Ireland with the associated front perhaps bringing some snow along the leading edge on higher ground in the north but at this stage the main interest lies to the west over North America where the east coast storm is impacting the jet as the Bermuda high pressure surges. This will have a knock on affect downstream and the evolution over the UK during the weekend and beyond.

    gfs_ptype_slp_eur3_13.thumb.png.9c7a967e0a50fe6ea781922fbc1a73f7.pnggfs_ptype_slp_east3_13.thumb.png.732665bb7484b426c8145ab60fa344b8.pnggfs_uv250_natl_13.thumb.png.d62d3dbdad121da09068dde2233381be.png



    Link to comment
    Share on other sites

    Posted
  • Location: East Ham, London
  • Location: East Ham, London

    Morning all :)


    90-515UK.GIF?02-0

    From my IMBY-ist perspective, slightly more concerned by the track and intensity of Friday's feature - not as vigorous as Eleanor it would seem but likely to bring a period of heavy rain and strong winds during daylight hours on Friday so another "event" to consider.

    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks

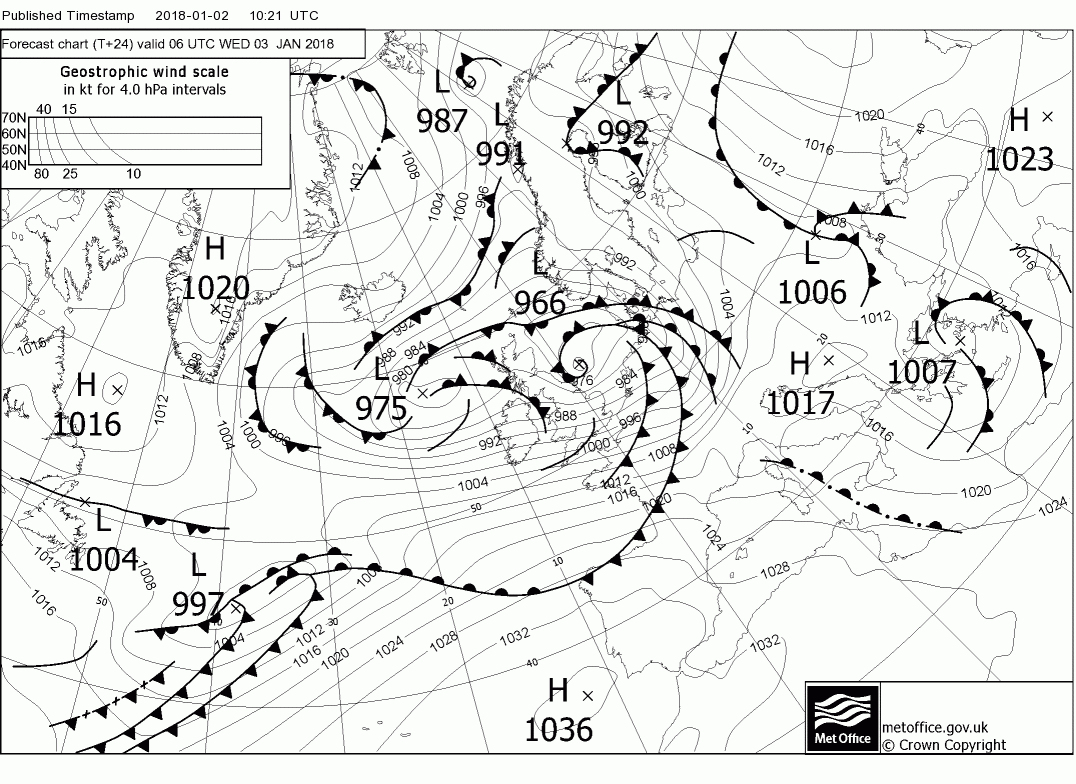

    The Met track, using their 06 z for today and predicted for tomorrow suggests:-

    a bit below 1000 mb around 48N 28W to track just north of the Isle of Man then track just N of E clearing the east coast somewhere close to Newcastle with a central pressure around 976 mb.

    http://www.weathercharts.org/ukmomslp.htm#t24

    again to track it use this link

    http://meteocentre.com/analysis/map-surface.php?date=0&lang=en&area=eur&size=standard

    This link is not perfect for correct positioning and depth of systems but gives a fair idea, and you can toggle both the size and time of chart.

    Interesting for sure and possibly severe gales for some, much as indicated by UK Met warnings. Why spend time in the coldie section when there is such interesting weather in the shorter term

    After this low has passed we can also then turn to 'what cold spell, when, if etc. The next 72h after the storm takes us currently out to T+144h, right in the midst of the possible cold set up. If you want to cheat a bit and look that far ahead, take a look at the first link above for UK Met ideas on what may happen!

    Link to comment
    Share on other sites

    Posted
  • Location: just south of Doncaster, Sth Yorks
  • Location: just south of Doncaster, Sth Yorks
    2 hours ago, stodge said:

    Morning all :)


    90-515UK.GIF?02-0

    From my IMBY-ist perspective, slightly more concerned by the track and intensity of Friday's feature - not as vigorous as Eleanor it would seem but likely to bring a period of heavy rain and strong winds during daylight hours on Friday so another "event" to consider.

    Yes another on its way, again at T+84 (bit outside this thread?) UK Met show their position and I would suspect following its track from its position on the previous Fax chart, (we are assuming of course that depth and positions are correct-a big ask really), would take it out of the southern half of East Anglia, much as the chart you show. Just how strong any winds will be is obviously too far out to give values, windy will cover it for now.

    Really interesting weather being predicted and maybe even a cold spell after all this?

    Link to comment
    Share on other sites
