Evening all



nice to see the eruption site again,so she still goes on,+a lot of big quakes again today i see

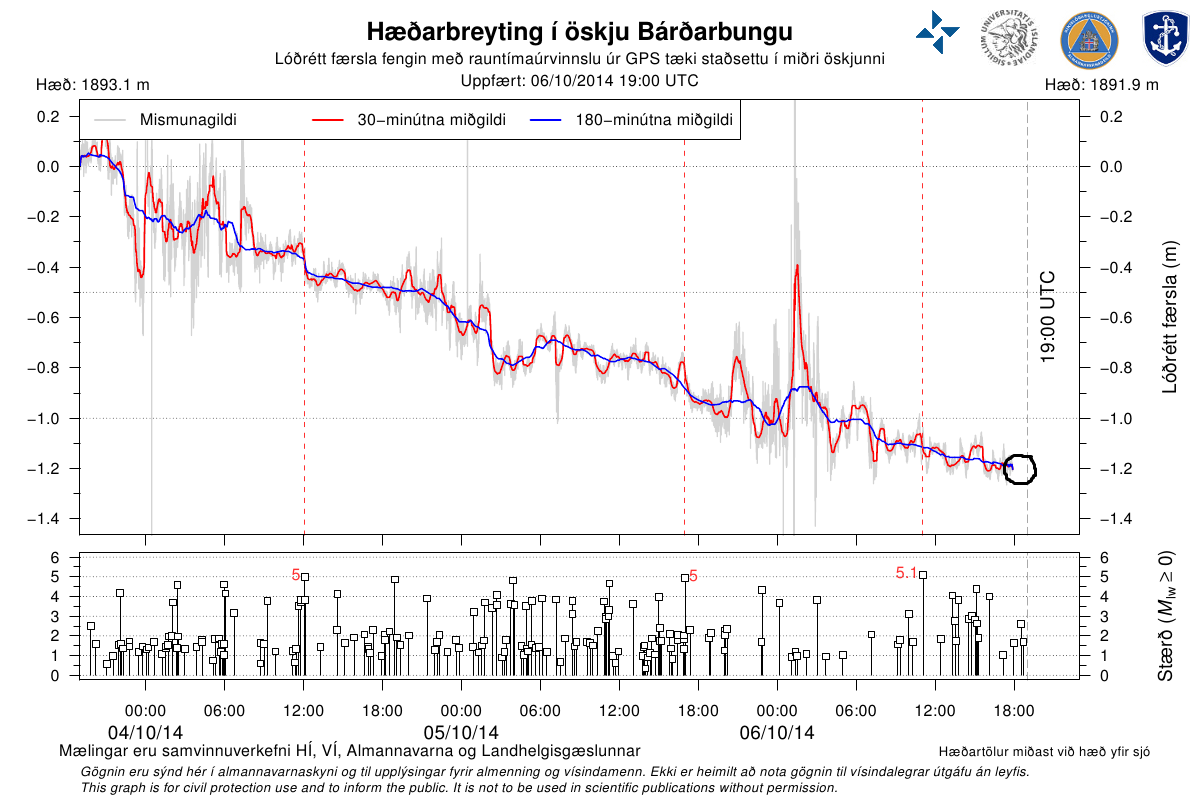

as for the gps @ the moment,there is no data but still updating



i have drawn a black circle where it is blank,hopefully it will be back up and running soon.





incoming



m4+ maybe

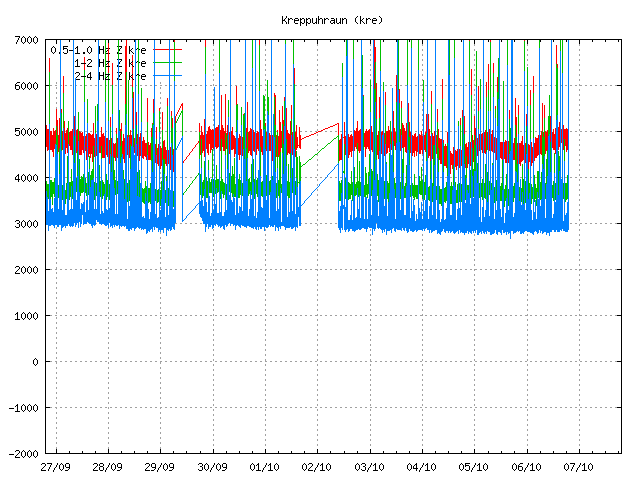

quiet a few upticks on here



http://hraun.vedur.is/ja/oroi/allarsort.html



EMSC has it @ 4.2



2014-10-06   19:03:40.015min ago 64.75  N   16.92  W   10km  4.2  ICELAND

Edited October 6, 2014 by Allseasons-si

[john pike]

M 4.2 - ICELAND - 2014-10-06 19:03:40 UTC



http://www.emsc-csem.org/Earthquake/seismologist.php



probably 4,5-4,7



Edited October 6, 2014 by john pike

[john pike]

haha  snap :-)

[Allseasons-Si]

haha  snap :-)

LOL



not comfirmed yet so probabley bigger like you say john,il'l go for 4.8.



Edit:you win,well done



Monday

06.10.2014 19:03:34 64.670 -17.458 6.7 km 4.7 99.0 4.7 km NE of Bárðarbunga



+

Monday

06.10.2014 19:05:19 64.682 -17.476 9.6 km 4.3 99.0 5.2 km NNE of Bárðarbunga

Edited October 6, 2014 by Allseasons-si

[john pike]

Monday

06.10.2014 19:05:19 64.682 -17.476 9.6 km 4.3 99.0 5.2 km NNE of Bárðarbunga Monday

06.10.2014 19:03:34 64.670 -17.458 6.7 km 4.7 99.0 4.7 km NE of Bárðarbunga



hi all



2 put up

http://en.vedur.is/earthquakes-and-volcanism/earthquakes/#view=table

[Allseasons-Si]

The 4.3 has been downgraded



Monday
06.10.2014 19:05:19 64.682 -17.476 9.6 km 3.6 99.0 5.2 km NNE of Bárðarbunga

[karyo]



The 4.3 has been downgraded



Monday

06.10.2014 19:05:19 64.682 -17.476 9.6 km 3.6 99.0 5.2 km NNE of Bárðarbunga



I don't like it when they get downgraded.

[Allseasons-Si]

I don't like it when they get downgraded.

No neither do i,it said 99.0% as well on IMO.



A 2.7 @ the edge of the glacier allthough quiet deep,but theres not been much activity in that area in the last 48 hrs



http://baering.github.io/



Monday

06.10.2014 19:29:38 64.794 -16.888 9.7 km 2.7 99.0 15.2 km E of Kistufell

Edited October 6, 2014 by Allseasons-si

[john pike]

hi allseasons



thanks



heres the list today



Monday
06.10.2014 19:05:19 64.682 -17.476 9.6 km 3.6 99.0 5.2 km NNE of Bárðarbunga Monday
06.10.2014 19:03:34 64.670 -17.458 6.7 km 4.7 99.0 4.7 km NE of Bárðarbunga Monday
06.10.2014 16:06:11 64.683 -17.477 6.1 km 4.0 99.0 5.4 km NNE of Bárðarbunga Monday
06.10.2014 15:07:30 64.672 -17.492 8.6 km 4.4 99.0 3.9 km NNE of Bárðarbunga Monday
06.10.2014 14:46:09 64.691 -17.492 5.0 km 3.0 99.0 5.9 km NNE of Bárðarbunga Monday
06.10.2014 13:45:20 64.673 -17.428 6.5 km 3.8 99.0 6.0 km NE of Bárðarbunga Monday
06.10.2014 13:17:22 64.628 -17.576 7.1 km 4.0 99.0 2.7 km WSW of Bárðarbunga Monday
06.10.2014 11:04:04 64.666 -17.447 2.3 km 5.1 99.0 4.8 km NE of Bárðarbunga Monday
06.10.2014 09:58:21 64.675 -17.433 4.9 km 3.1 99.0 5.9 km NE of Bárðarbunga Monday
06.10.2014 05:32:34 64.711 -17.396 9.8 km 4.2 99.0 10.0 km NE of Bárðarbunga Monday
06.10.2014 03:00:27 64.679 -17.490 6.9 km 3.8 99.0 4.7 km NNE of Bárðarbunga Monday
06.10.2014 00:09:33 64.679 -17.477 6.9 km 3.7 99.0 4.9 km NNE of Bárðarbunga



not bar 1 WSW



all have been north-north east







looking at the above



the ground is being displaced east to west and north east to south east



with the pressure of the quakes to the north east and the subsidence not so noticeable now



(except for the 4th with the mag 5 ). i still feel the north east flank is at risk of collapse



however this again are my own opinions and in theory this could just stop.



 mo update



6th October 2014 19:00 - from geoscientist on duty

Seismic activity in the dyke intrusion was low today, see today's map (and compare to a week ago). Since 07:00 this morning, only about 5 earthquakes have been detected there (less than 10 since midnight), all below magnitude 2. Storm conditions around Vatnajökull might affect the detection of the smallest earthquakes.

Around 20 earthquakes have been detected around the Bárðarbunga caldera rim since the last report at 07:00 (ca. 30 since midnight). The strongest event was magnitude 5.1 at 11:04 on the northern caldera rim. Of these, seven events exceeded magnitude 3 (ten since midnight).

The visibility of the eruption at Holuhraun on the webcams was limited today. Scientists in the field, and the ranger in Dreki, have confirmed that it is continuing at comparable levels as during recent days.



http://en.vedur.is/earthquakes-and-volcanism/articles/nr/2947

Edited October 6, 2014 by john pike

[john pike]

http://www.livefromiceland.is/webcams/bardarbunga-2/



grrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr

[Allseasons-Si]

http://www.livefromiceland.is/webcams/bardarbunga-2/



grrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr

eeeeeeeeeeeeeeaaaaaaaaaaat lol



pin the tail on the donkey on cam 1



http://www.livefromiceland.is/webcams/bardarbunga/



or shoud say lava frog



Edited October 6, 2014 by Allseasons-si

[john pike]

the plots now show the 4,7 quake



look to be around 40 mins behind



[Allseasons-Si]

the plots now show the 4,7 quake



look to be around 40 mins behind



Yeah



dyn and grim picked it up first while von was behind.



so the first two(dyn and grim) to keep a eye on in the future maybe.



i see red



http://www.livefromiceland.is/webcams/bardarbunga

Edited October 6, 2014 by Allseasons-si

[john pike]



up again

[Allseasons-Si]



up again

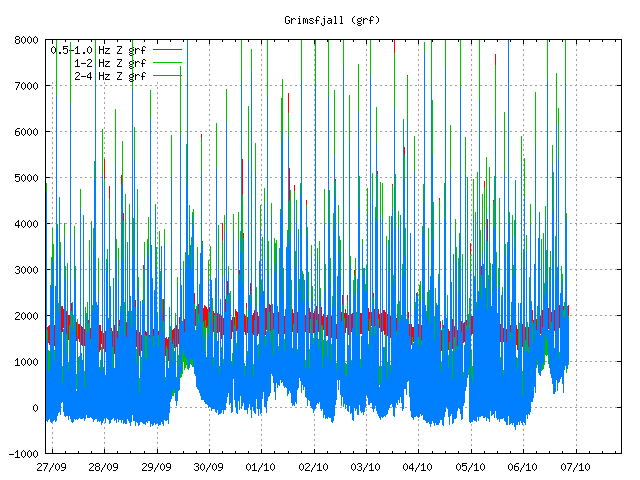

Grims is on the up too i think!



[Allseasons-Si]

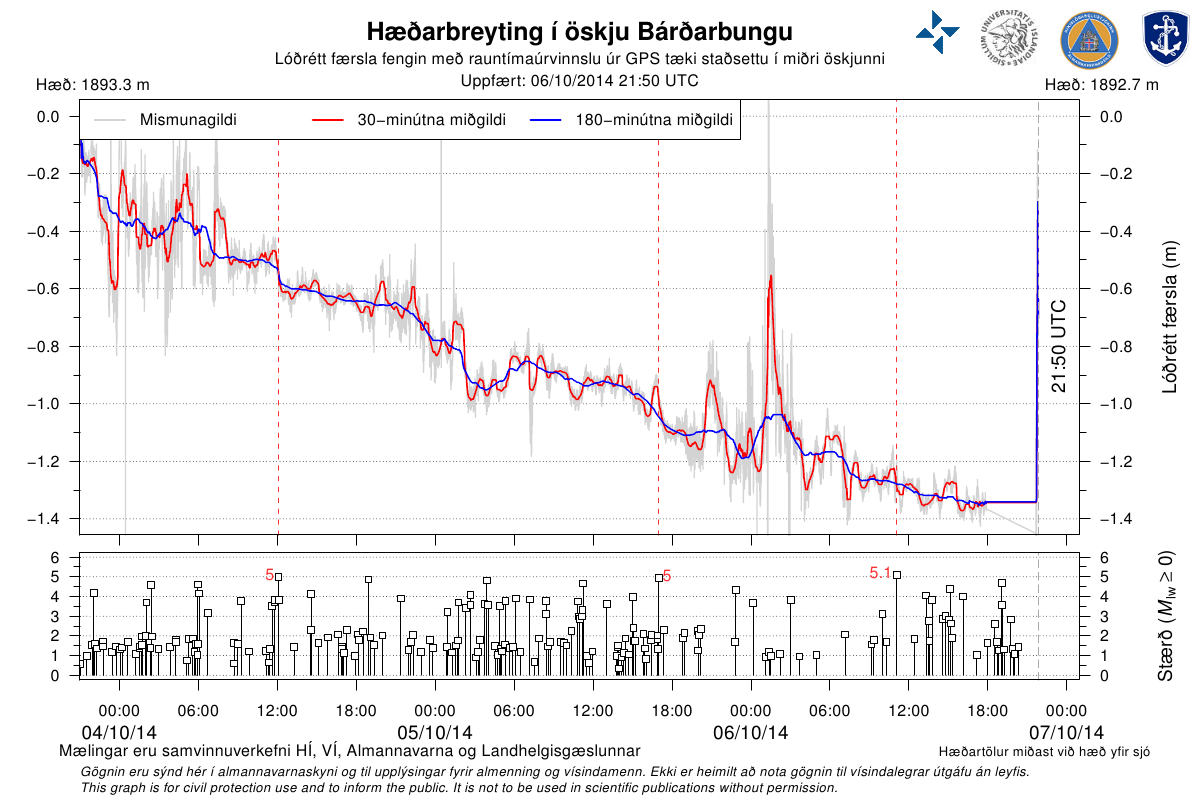

Gps trying there



http://hraun.vedur.is/ja/Bardarb/BARC/



look at that drop lol



that would be substantial,but i think that is not right and we should give it time to re-adjust.



now a big rise lol.



Edited October 6, 2014 by Allseasons-si

[Allseasons-Si]

A 3+ coming soon

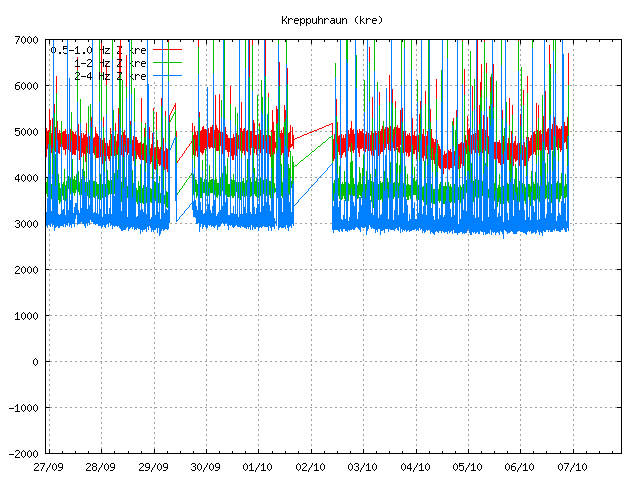

uptick there





maybe toutching a 4.



guess 3.8



well,gps is still up and sticking there  @ the mo,that's quiet a jump,i will give it a bit longer to see if it levels out,if not,then there is something happening.

Edited October 6, 2014 by Allseasons-si

[Yarmy]

Gps trying there



http://hraun.vedur.is/ja/Bardarb/BARC/



look at that drop lol



that would be substantial,but i think that is not right and we should give it time to re-adjust.



now a big rise lol.




Same thing happened at midnight the previous 2 nights. Some sort of scheduled instrument recalibration?

[Allseasons-Si]

Same thing happened at midnight the previous 2 nights. Some sort of scheduled instrument recalibration?

Yeah,but this looks diferent though,maybe give it a bit more time but it's holding up there  @ the mo



maybe or maybe not something is happening,i have that funny feeling lol.

Edited October 6, 2014 by Allseasons-si

[The PIT]

Fairly quiet overnight. Nothing too see on web cams due to the weather no doubt.

[Midlands Ice Age]

See there has been a mag 5.0 and a 4.0 overnight.

Also quite a few near surface smaller quakes which have not yet been shown on the GPS map yet.

The GPS signal seems to be trying to settle down after yesterday's evening outage but somehow it looks slightly different to me. It seems to be trying to rise a small amount.

MIA

[karyo]

See there has been a mag 5.0 and a 4.0 overnight.

Also quite a few near surface smaller quakes which have not yet been shown on the GPS map yet.

The GPS signal seems to be trying to settle down after yesterday's evening outage but somehow it looks slightly different to me. It seems to be trying to rise a small amount.

MIA

What has caught my eye is the large drop in the GPS between 3 and 6am!

[BrickFielder]

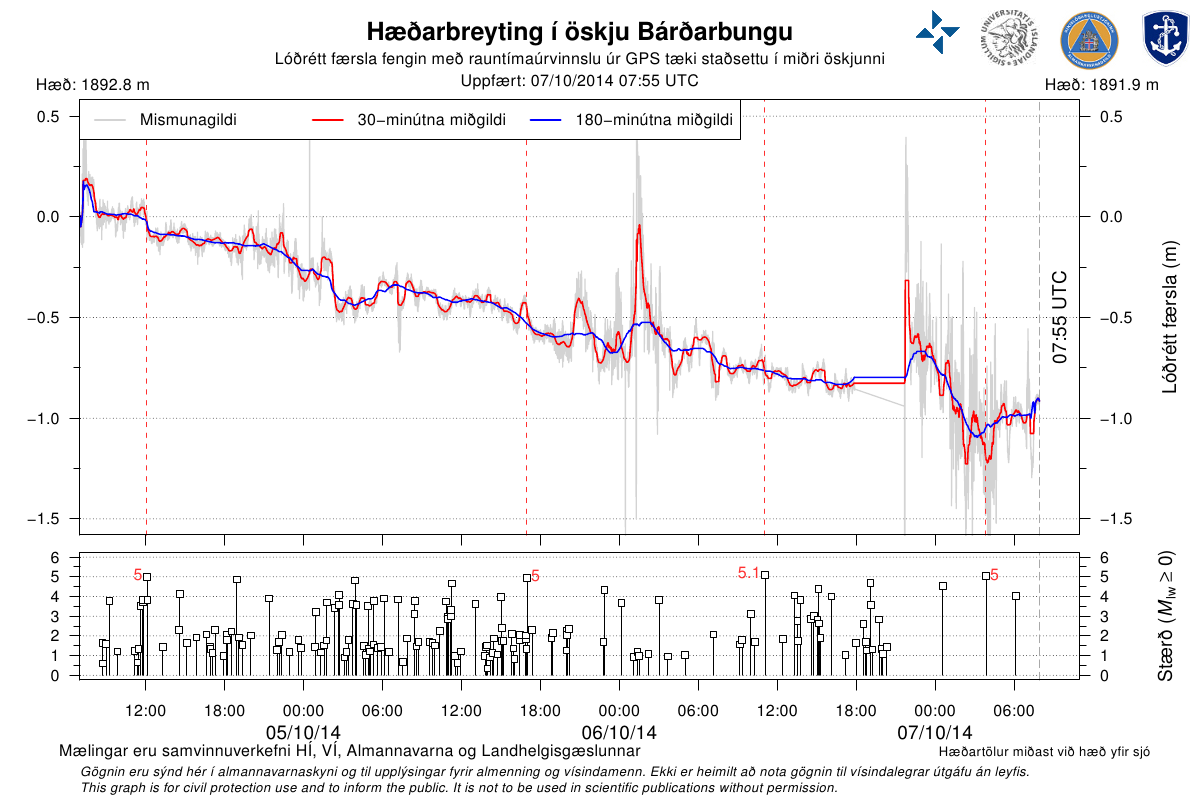

  Just a quick note to say I think something a little different happened overnight. Bearing in mind the weather conditions are poor in the area of Bárðarbunga and there is ample reason to see false signals I still think something a little different happened.





These measurements are a cooperation of the University of Iceland, the Icelandic Met Office, the Civil Protection department of the NCIP and the Icelandic Coastal Survey. They are accessed through the Icelandic Met Office web site at the following address.



http://en.vedur.is/earthquakes-and-volcanism/gps-measurements/bardarbunga/caldera/







It looks like there was a slight uplift and then a marked drop at Bárðarbunga. We have seen this a number of times before so at first glance nothing seems unusual. There has even been speculation that this bumping around is something to do with how the ice reacts in the caldera.



What strikes me as different is that this appears to be picked up on other SIL's. These are extracts from the full SIL charts.







The full charts are accesible at the university of Iceland site at the following link



http://jardvis.hi.is/gps_timaradir_vid_bardarbungu





This looks like a marked eastwards movement at vonaskard (VON SIL) with a smaller movement eastwards at  HAFS, while there appears to be a movement westward at DYNC. Bearing in mind weather conditions (blue lines on tremor charts tend to pick up) there does not seem like much evidence in a pick up in magma movement near the surface (red and green lines on the tremor charts).



A possible culprit is the following earthquake Monday Evening



06.10.2014    22:00:20    64.677    -17.410    4.0 km    3.8    99.0    6.9 km NE of Bárðarbunga.



To me this looks more like a slip fault earthquake on the ring fault. Something a little different from the normal even if it is not. I think this shows how the crust is being deformed and this might just be a relaxation in stress. I would not be surprised to see earthquake activity reduce a little now and for the eruption site to see a little spurt of activity through this morning.



As usual this is my interpretation and may well be wrong so make up your own minds.



[Polarlow]

BIG ONE..........



Magnitude Mw 5.5
Region ICELAND
Date time 2014-10-07 10:22:33.8 UTC
Location 64.45 N ; 17.45 W
Depth 15 km



http://hraun.vedur.is/ja/drumplot/von.png

Edited October 7, 2014 by Polarlow

[Allseasons-Si]

@ PL



yes a biggy but the depth is wrong



Tuesday
07.10.2014 10:22:28 64.604 -17.339 7.5 km 5.5 99.0 9.9 km ESE of Bárðarbunga



http://en.vedur.is/earthquakes-and-volcanism/earthquakes#view=table



http://baering.github.io/

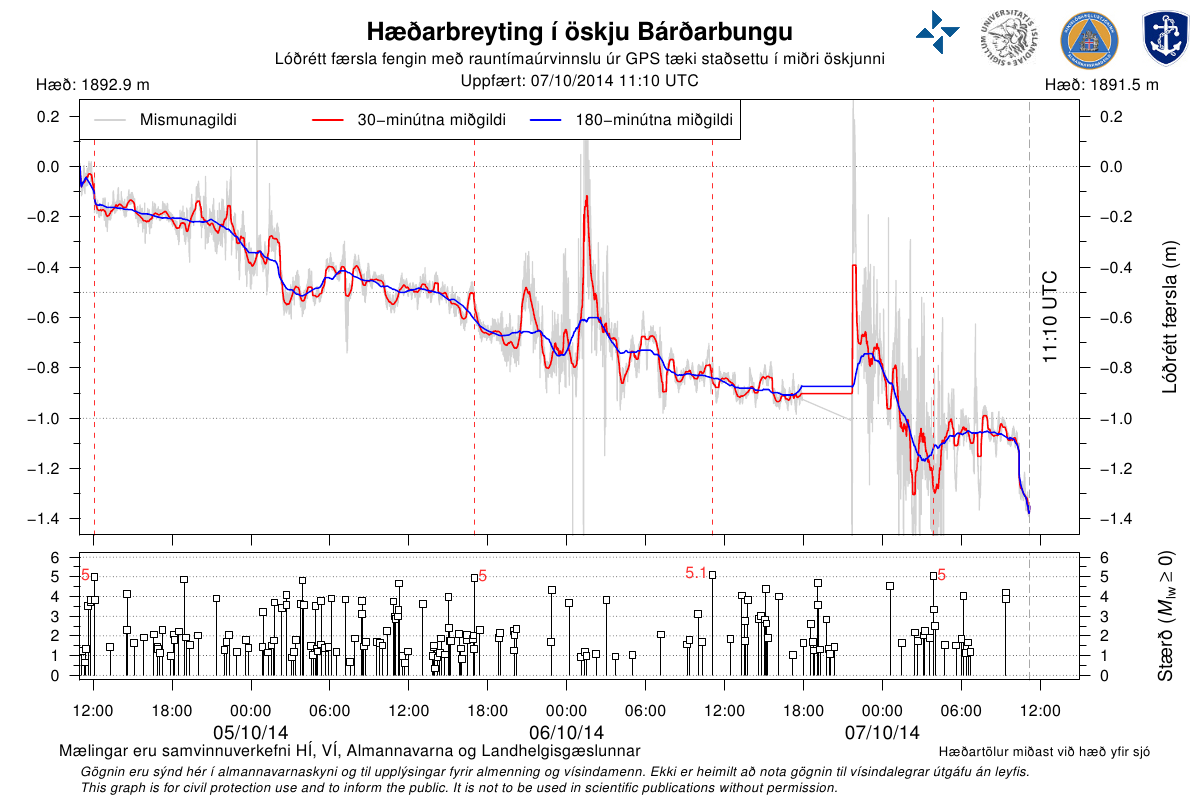

a couple more biggies may be on there way soon,big drop on the gps too





big ticks here too



http://hraun.vedur.is/ja/oroi/allarsort.html



the IMO are a bit slow today at updating these EQ'S!



got to go ,but will be back after 10 tonight,laters.
